Pressure Measurement & Calibration

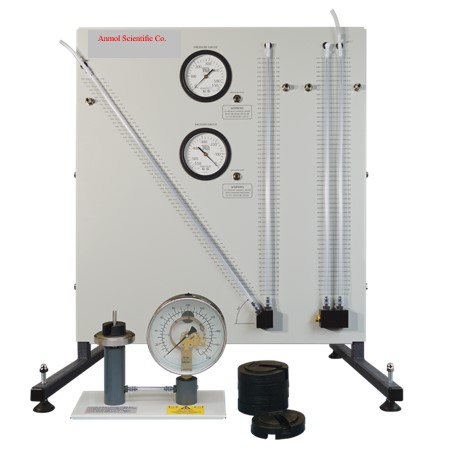

The manometer panel contains 2 tubes, 2 dial manometers, and one pressure transducer for the demonstration of alternative measurement methods. Test pressures in the millibar range are generated with the aid of the supplied syringe and or hand pump. All manometers can be combined with one another using connecting hoses. It is possible to measure gauge pressure and vacuum. The unit is also supplied for detecting deviations in a measuring instrument compared to a reference instrument or universally accepted standard value. This observed deviation is taken into account in the subsequent use of the calibrated measuring instrument and adjusted if necessary. A dead Weight Pressure Calibrator is a device designed as an introduction to the basics of checking and calibrating a manometer. Dead Weight Pressure Calibrator apparatus consists of a precision machined piston and cylinder assembly mounted on leveling screws. A Bourdon gauge is supplied for calibration.
