Air Controlled Classifier

Model: AS-001-01                         Make: PAK

Description

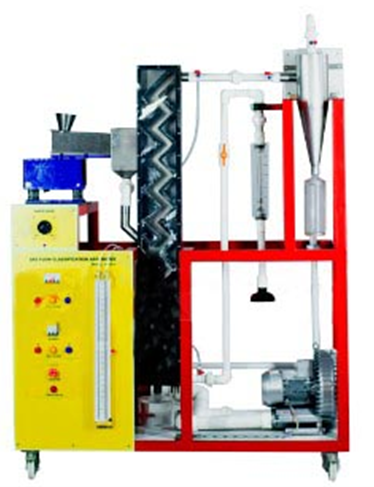

The solid material undergoing separation is introduced into the feeding hopper. From there, it is conveyed into the zigzag duct of the sifter at a mid-level through a vibrating trough. An upward air current moves through the vertical duct. The particles’ movement depends on their geometry and density, causing them to either be carried upward by the air or fall down under the influence of gravity. At each bend in the duct, the solid material traverses the air stream and descends onto the opposite wall of the sifter, marking the completion of one sifting stage.
